Articulating Boom Lift SPA20AC-Li (SPA66AC-Li) (19.5–21.5m)- Rent

Name: Articulating Boom Lift SPA20AC-Li (SPA66AC-Li) (19.5–21.5m)- Rent
SKU: SPA20AC-Li
Availability: InStock

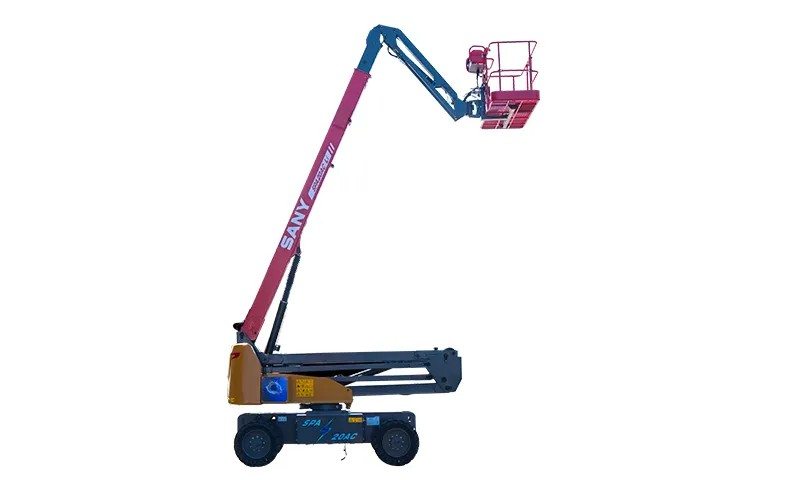

Articulating Boom Lift
• Maximum Working Height: 21.5 m
• Maximum Platform Height: 19.5 m
• Maximum Horizontal Outreach: 12.1 m

Manufacturer: SANY

SKU: SPA20AC-Li

Start date: *

End date: *

Qty:

Products specifications

Attribute name	Attribute value
Articulating Boom Lift Dimensions
Platform height max.	19.50m
Working height max.	21.50m
Horizontal outreach max.	12.10m
Length (stowed)	9.00m
Width (stowed)	2.49m
Height (stowed)	2.43m
Platform dimension (LxW)	2.44m×0.91m
Ground clearance	0.36m
Wheelbase	2.50m
Lift capacity (Unrestricted/Restricted)	258kg/320kg
Turntable tail swing	0.60m
Jib rotation	+70° / -65°
Turntable rotation	360° Continuous
Platform rotation	180°
Articulating Boom Lift Performance
Platform occupancy max.	2 Persons and tools
Tilt sensor activation	X-5° / Y-5°
Turning radius max.(inside/outside)	3.50m/6.00m
Gradeability	45%
Drive speed-stowed	0-5.5km/h
Drive speed-raised	0-0.8km/h
Articulating Boom Lift Power
Drive x Steer	4WD×2WS
Battery	80V/320Ah
Charger (input)	100-240V AC
Others
Weight	9150Kg
