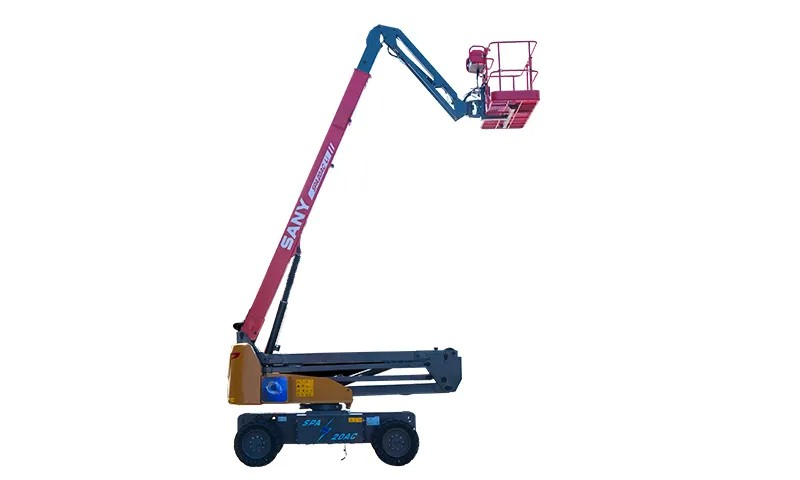

Articulating Boom Lift SPA20AC (SPA66AC) (20–22.0m)- Rent

Name: Articulating Boom Lift SPA20AC (SPA66AC) (20–22.0m)- Rent
SKU: SPA20AC
Availability: InStock

Articulating Boom Lift
• Maximum Working Height: 22.0 m
• Maximum Platform Height: 20.0 m
• Maximum Horizontal Outreach: 12.4 m

Manufacturer: SANY

SKU: SPA20AC

Start date: *

End date: *

Qty:

Products specifications

Attribute name	Attribute value
Articulating Boom Lift Dimensions
Platform height max.	20.00m
Working height max.	22.00m
Horizontal outreach max.	12.40m
Length (stowed)	9.47m
Width (stowed)	2.49m
Height (stowed)	2.55m
Platform dimension (LxW)	2.44m×0.91m
Ground clearance	0.28
Wheelbase	2.50m
Lift capacity (Unrestricted/Restricted)	258kg/320kg
Turntable tail swing	0.60m
Jib rotation	+70° / -65°
Turntable rotation	360° Continuous
Platform rotation	180°
Articulating Boom Lift Performance
Platform occupancy max.	2 Persons and tools
Tilt sensor activation	X-5° / Y-5°
Turning radius max.(inside/outside)	4.60m/7.50m
Gradeability	45%
Drive speed-stowed	0-5.7km/h
Drive speed-raised	0-0.8km/h
Articulating Boom Lift Power
Drive x Steer	4WD×2WS
Battery	48V/400Ah (Lead acid battery)
Charger (input)	100-240V AC
Others
Weight	10100Kg
