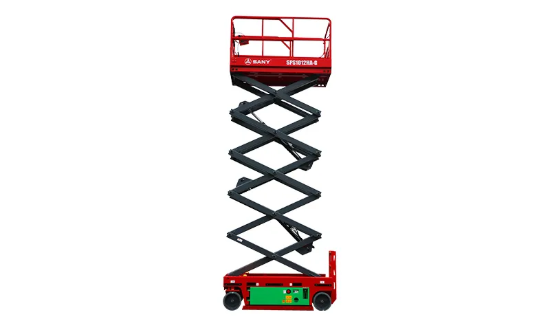

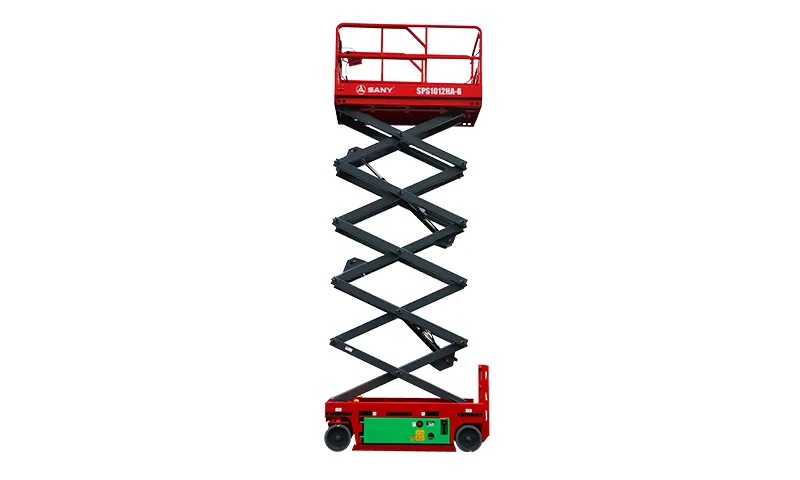

Scissor Lift SPS1012HA (SPS3246HA)

Name: Scissor Lift SPS1012HA (SPS3246HA)
SKU: SPS1012HA
Availability: InStock

Scissor Lift
• Maximum Working Height: 12 m
• Maximum Platform Height: 10 m
• Platform Extension: 0.9 m

Be the first to review this product

Manufacturer: SANY

Scissor Lift SPS1012HA (SPS3246HA)- Rent

SKU: SPS1012HA

Start date: *

End date: *

Qty:

Scissor Lift SPS1012HA (SPS3246HA)- Buy

SKU: SPS1012HA

Qty:

SPS1012HA offers a maximum working height of 12 m and a 350 kg capacity. It is equipped with intelligent monitoring, fault diagnostics, and proportional controls. With a wider platform, IP67 components, and modular design, it provides enhanced productivity and long‑term durability.

Products specifications

Attribute name	Attribute value
Dimensions
Working height max.	12.00m
Platform height max.	10.00m
Length machine with/without ladder	2.48m/2.27m
Width	1.18m
Machine height	2.51m
Machine height – rails folded	1.83m
Platform length - outside	0.90m
Wheelbase	1.87m
Ground clearance - pothole guards retracted/deployed	110mm/19mm
Platform dimension (L×W×H)	2.27m×1.12m×1.12m
Performance
Maximum Platform Occupancy (Indoor/Outdoor)	2/1
Lift capacity	350Kg
Lift Capacity – Extension Deck Deployed	120Kg
Drive Speed – Stowed / Raised	3.5/0.8(km/h)
Turning radius - inside/outside	0.40m/2.40m
Lifting Motor	3.50kW
Gradeability – Stowed	25%
Tilt Sensor Activation (Side-to-Side / Front-to-Back)	1.5°/3.0°
Solid Non‑Marking Tires	Ø381mm×127mm
Power Supply
Battery Specifications	4×6V/260Ah
Battery Charger (Input Requirements)	AC100~240V
Drive Motor	Hydraulic
Additional Features
Machine Weight	2750Kg
Forklift pocket	Backward, Lateral
