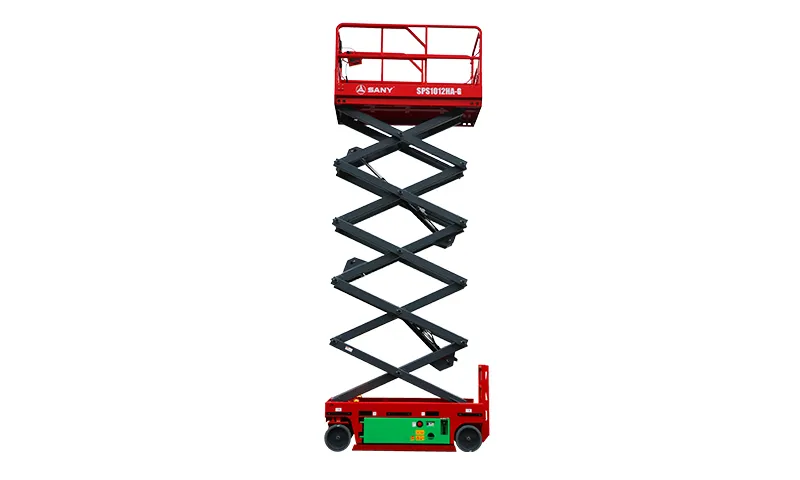

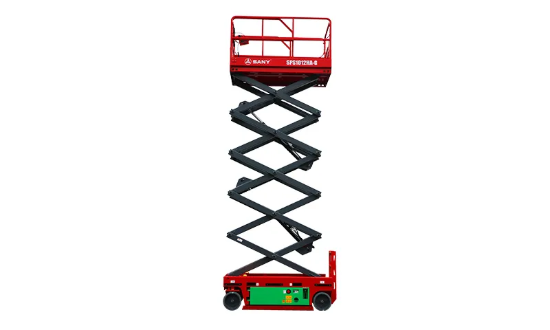

Scissor Lift SPS1012HA (SPS3246HA)- Rent

Scissor Lift
• Maximum Working Height: 12 m
• Maximum Platform Height: 10 m
• Platform Extension: 0.9 m
Manufacturer: SANY
SKU: SPS1012HA
*
*

SPS1012HA offers a maximum working height of 12 m and a 350 kg capacity. It is equipped with intelligent monitoring, fault diagnostics, and proportional controls. With a wider platform, IP67 components, and modular design, it provides enhanced productivity and long‑term durability.

Products specifications

Attribute nameAttribute value
Dimensions
Working height max.12.00m
Platform height max.10.00m
Length machine with/without ladder2.48m/2.27m
Width1.18m
Machine height2.51m
Machine height – rails folded1.83m
Platform length - outside0.90m
Wheelbase1.87m
Ground clearance - pothole guards retracted/deployed110mm/19mm
Platform dimension (L×W×H)2.27m×1.12m×1.12m
Performance
Maximum Platform Occupancy (Indoor/Outdoor)2/1
Lift capacity350Kg
Lift Capacity – Extension Deck Deployed120Kg
Drive Speed – Stowed / Raised3.5/0.8(km/h)
Turning radius - inside/outside0.40m/2.40m
Lifting Motor3.50kW
Gradeability – Stowed25%
Tilt Sensor Activation (Side-to-Side / Front-to-Back)1.5°/3.0°
Solid Non‑Marking TiresØ381mm×127mm
Power Supply
Battery Specifications4×6V/260Ah
Battery Charger (Input Requirements)AC100~240V
Drive MotorHydraulic
Additional Features
Machine Weight2750Kg
Forklift pocketBackward, Lateral
