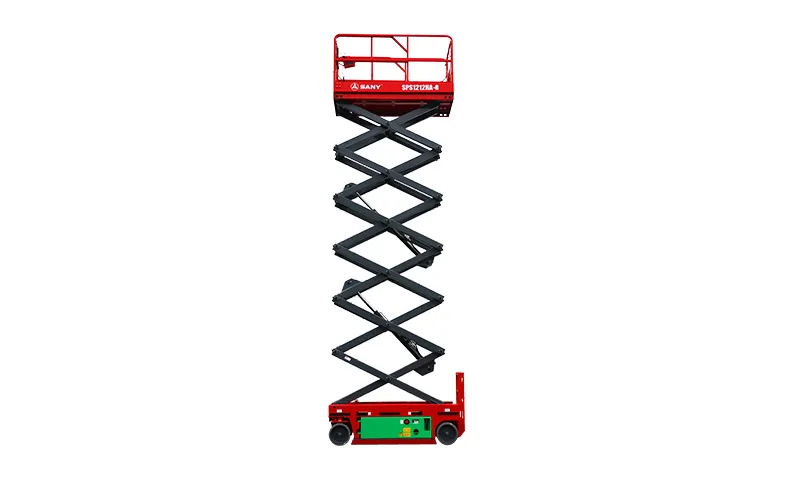

Scissor Lift SPS1212HA (SPS4046HA)

Scissor Lift
• Maximum Working Height: 14.00 m
• Maximum Platform Height: 12.00 m
• Platform Extension: 0.9 m
Scissor Lift SPS1212HA (SPS4046HA)- Rent
SKU: SPS1212HA
*
*
Scissor Lift SPS1212HA (SPS4046HA)- Buy
SKU: SPS1212HA

The SPS1212HA is a high‑performance scissor lift in the HA series, offering a maximum working height of 14 m and a rated capacity of 350 kg. It is engineered for safe, efficient, and intelligent operation, featuring real‑time monitoring, automatic fault diagnostics, and proportional lift/descent controls for precise handling. Its wide scissor arm stack enhances operator stability and confidence, while IP67‑rated electrical components and durable e‑coat/powder coating ensure long‑term reliability. The modular design with over 90% parts commonality, swing‑out battery compartment, and refined hose/harness layout make maintenance simple and cost‑effective.

Products specifications

Attribute name Attribute value
Dimensions
Working height max. 14.00m
Platform height max. 12.00m
Length machine with/without ladder 2.48m/2.27m
Width 1.18m
Machine height 2.64m
Machine height – rails folded 1.96m
Platform length - outside 0.90m
Wheelbase 1.87m
Ground clearance - pothole guards retracted/deployed 110mm/19mm
Platform dimension (L×W×H) 2.27m×1.12m×1.12m
Performance
Maximum Platform Occupancy (Indoor/Outdoor) 2/0
Lift capacity 350Kg
Lift Capacity – Extension Deck Deployed 120Kg
Drive Speed – Stowed / Raised 3.5/0.8(km/h)
Turning radius - inside/outside 0.40m/2.40m
Lifting Motor 3.50kW
Gradeability – Stowed 25%
Tilt Sensor Activation (Side-to-Side / Front-to-Back) 1.5°/3.0°
Solid Non‑Marking Tires Ø381mm×127mm
Power Supply
Battery Specifications 4×6V/260Ah
Battery Charger (Input Requirements) AC100~240V
Drive Motor Hydraulic
Additional Features
Machine Weight 2900Kg
Forklift pocket Backward, Lateral
