Scissor Lift SPS1414HA- Buy

Scissor Lift
• Maximum Working Height: 15.8 m
• Maximum Platform Height: 13.8 m
• Platform Extension: 0.9 m
Manufacturer: SANY
SKU: SPS1414HA

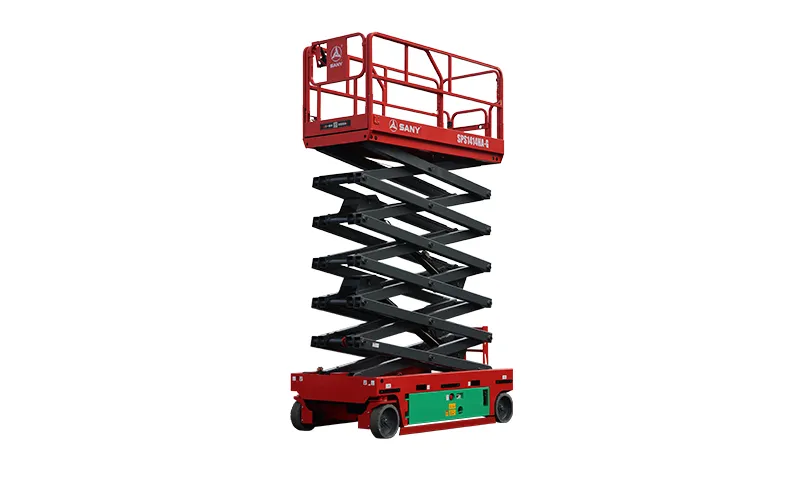

The SPS1414HA is the highest‑reach model in the HA series, offering a maximum working height of 15.8 m and a rated capacity of 350 kg. Designed for demanding applications, it features intelligent monitoring with real‑time status display, automatic fault diagnostics, and proportional lift/descent controls for precise operation. Its wide scissor arm stack enhances operator stability and confidence, while IP67‑rated electrical components and durable e‑coat/powder coating ensure long‑term reliability. The SPS1414HA also supports lithium battery options for improved efficiency and reduced maintenance, making it ideal for projects that require extended reach, safety, and productivity.

Products specifications

Attribute nameAttribute value
Dimensions
Working height max.15.80m
Platform height max.13.80m
Length machine with/without ladder2.78m/2.64m
Width1.40m
Machine height2.68m
Machine height – rails folded1.95m
Platform length - outside0.90m
Wheelbase2.24m
Ground clearance - pothole guards retracted/deployed110mm/19mm
Platform dimension (L×W×H)2.64m×1.12m×1.12m
Performance
Maximum Platform Occupancy (Indoor/Outdoor)2/1
Lift capacity350Kg
Lift Capacity – Extension Deck Deployed120Kg
Drive Speed – Stowed / Raised3.0/0.8(km/h)
Turning radius - inside/outside0.40m/2.85m
Lifting Motor3.50kW
Gradeability – Stowed25%
Tilt Sensor Activation (Side-to-Side / Front-to-Back)1.5°/3.0°
Solid Non‑Marking TiresØ381mm×127mm
Power Supply
Battery Specifications24V/230Ah (Li)
Battery Charger (Input Requirements)AC100~240V
Drive MotorHydraulic
Additional Features
Machine Weight3540Kg
Forklift pocketBackward, Lateral
