Product overview

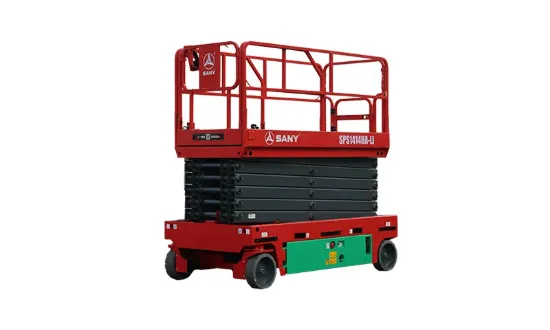

The SANY SPS1414HA is engineered for safe, efficient work at height, pairing a reinforced scissor stack with a robust chassis and an operator‑friendly control system. Its compact footprint enables agile manoeuvring in tight spaces, while the integrated protection and monitoring functions deliver smooth elevation, accurate positioning and high productivity in demanding environments.

Key specifications

Working height (max.)

15.8 m

Platform height (max.)

13.8 m

Rated load

350 kg

Occupants (indoor/outdoor)

2 / 1

Platform size

2.64 × 1.12 m

Platform extension

0.9 m

Machine width

1.4 m

Machine length (with/without ladder)

2.78 m / 2.64 m

Machine height (rails up/folded)

2.68 m / 1.95 m

Ground clearance (large/small)

110 mm / 19 mm

Weight

3,540 kg

Drive speed (stowed/raised)

3.0 / 0.8 km/h

Turning radius (inside/outside)

0.4 / 2.85 m

Gradeability

25%

Tilt sensor activation (side/front)

1.5° / 3°

Tyres

Ø 381 × 127 mm

Lift motor

3.5 kW

Powertrain

Sealed AC motor; IP67‑rated components

Battery (by configuration/region)

24 V / 230 Ah (Li)

Safety & compliance

CE; automatic pothole protection; emergency lowering; emergency stop; load/tilt protection

Key features

• Reinforced scissor structure for high stability at full height.
• User‑friendly control panel with real‑time monitoring and diagnostics.
• Anti‑slip platform and safety sensors against overload or imbalance.
• Pothole protection and emergency lowering for added safety.
• Compact design for easy navigation in narrow aisles; stable travel at height.
• IP67 components, e‑coat + powder‑coat finish for durability and low maintenance.

Typical applications

Ideal for industrial maintenance, electrical installation, HVAC, fit‑out and assembly tasks in indoor and outdoor environments.
