Telescopic Boom Lift SPT20AC (20–22m)- Buy

Name: Telescopic Boom Lift SPT20AC (20–22m)- Buy
SKU: SPT20AC
Availability: InStock

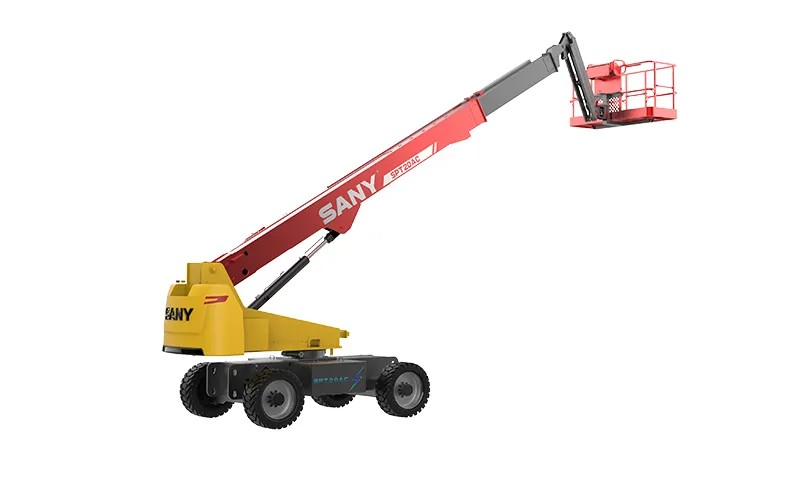

Telescopic Boom Lift
• Maximum Working Height: 21.8 m
• Maximum Platform Height: 19.8 m
• Maximum Horizontal Outreach: 15.2 m

Manufacturer: SANY

Availability: 50 in stock

SKU: SPT20AC

Qty:

Products specifications

Attribute name	Attribute value
Telescopic Boom Lift Dimensions
Platform height max.	19.80m
Working height max.	21.80m
Horizontal outreach max.	15.20m
Length (stowed)	9.90m
Width (stowed)	2.49m
Height (stowed)	2.57m
Platform dimension (L x W)	2.44m×0.91m
Ground clearance	0.28m
Wheelbase	2.50m
Lift capacity (Unrestricted/Restricted/Restricted)	230kg/300kg/450kg
Turntable tail swing	1.45m
Jib rotation	+70° / -65°
Turntable rotation	360° Continuous
Platform rotation	180°
Telescopic Boom Lift Performance
Platform occupancy max. (Unrestricted/Restricted/Restricted)	2 Persons and tools / 2 Persons and tools / 3 Persons and tools
Tilt sensor activation	X-5° / Y-5°
Turning radius max. (inside/outside)	4.60m / 7.50m
Gradeability	45%
Drive speed-stowed	0-5.5km/h
Drive speed-raised	0-0.8km/h
Power
Drive x Steer	4WD×2WS
Battery	76.8V/320Ah (Lithium battery)
Charger (input)	100-240V AC
Others
Weight	10150kg
