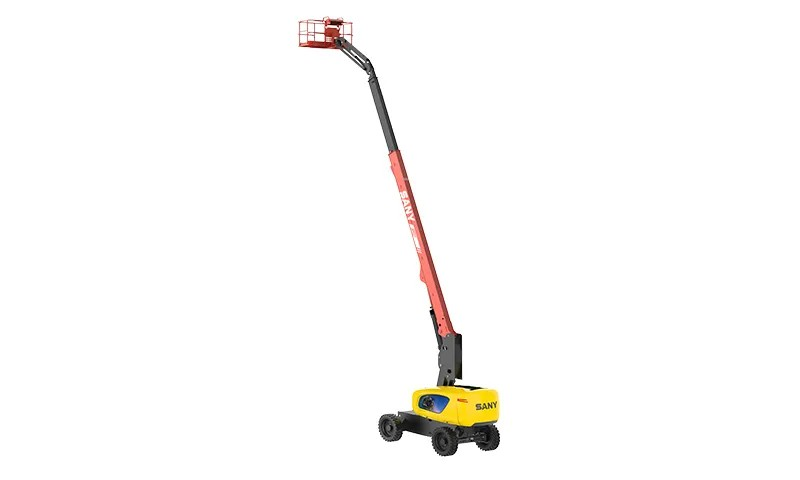

Telescopic Boom Lift SPT22 (SPT73) (20–22 m)- Rent

Name: Telescopic Boom Lift SPT22 (SPT73) (20–22 m)- Rent
SKU: SPT22
Availability: InStock

Telescopic Boom Lift
• Maximum Working Height: 24.4 m
• Maximum Platform Height: 22.4 m
• Maximum Horizontal Outreach: 16.5 m

Manufacturer: SANY

SKU: SPT22

Start date: *

End date: *

Qty:

Products specifications

Attribute name	Attribute value
Telescopic Boom Lift Dimensions
Platform height max.	22.40m
Working height max.	21.80m
Horizontal outreach max.	16.50m
Length (stowed)	11.00m
Width (stowed)	2.45m
Height (stowed)	2.70m
Platform dimension (L x W)	2.44m×0.91m
Ground clearance	0.31m
Wheelbase	2.50m
Lift capacity (Unrestricted/Restricted/Restricted)	300kg/400kg/480kg
Turntable tail swing	1.50m
Jib rotation	+70° / -65°
Turntable rotation	360° Continuous
Platform rotation	180°
Telescopic Boom Lift Performance
Platform occupancy max. (Unrestricted/Restricted/Restricted)	2 Persons and tools / 2 Persons and tools / 3 Persons and tools
Tilt sensor activation	X-5° / Y-5°
Turning radius max. (inside/outside)	2.40m / 5.50m
Gradeability	45%
Drive speed-stowed	0-5.5km/h
Drive speed-raised	0-1.1km/h
Power
Drive x Steer	4WD×2WS
Fuel tank capacity	160L
Engine	36.4kW/2600rpm/ D2.9/DEUTZ/China Stage IV/36.5kW/2000rpm/ V2607-DI-TE3B/ KUBOTA/China Stage IV
Others
Weight	12700kg
