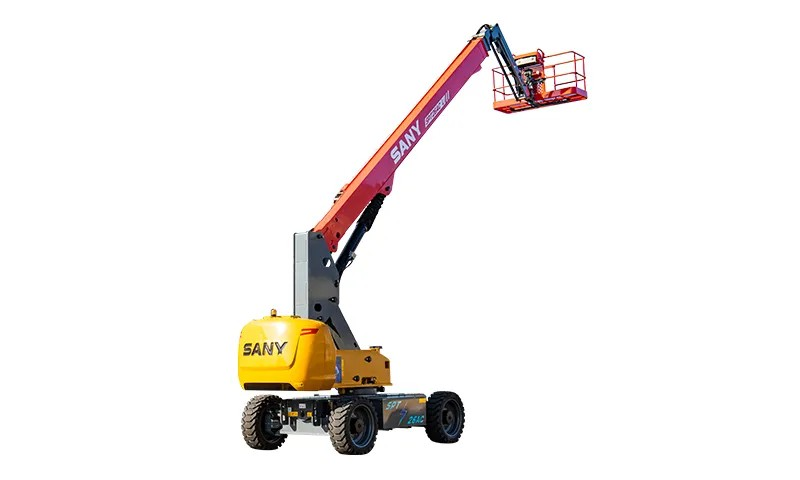

Telescopic Boom Lift SPT26AC (27–29 m)- Rent

Name: Telescopic Boom Lift SPT26AC (27–29 m)- Rent
SKU: SPT26AC
Availability: InStock

Telescopic Boom Lift
• Maximum Working Height: 28.2 m
• Maximum Platform Height: 26.2 m
• Maximum Horizontal Outreach: 19.2 m

Manufacturer: SANY

SKU: SPT26AC

Start date: *

End date: *

Qty:

SANY telescopic boom model SPT26 designed for maximum horizontal outreach, center-mounted boom, and rugged chassis for outdoor tasks.

Products specifications

Attribute name	Attribute value
Telescopic Boom Lift Dimensions
Platform height max.	26.20m
Working height max.	28.20m
Horizontal outreach max.	19.20m
Length (stowed)	12.40m
Width (stowed)	2.49m
Height (stowed)	3.03m
Platform dimension (L x W)	2.44m×0.91m
Ground clearance	0.33m
Wheelbase	3.05m
Lift capacity (Unrestricted/Restricted/Restricted)	300kg/400kg/454kg
Turntable tail swing	1.48m
Jib rotation	+70° / -65°
Turntable rotation	360° Continuous
Platform rotation	180°
Telescopic Boom Lift Performance
Platform occupancy max. (Unrestricted/Restricted/Restricted)	2 Persons and tools / 2 Persons and tools / 3 Persons and tools
Tilt sensor activation	X-5° / Y-5°
Turning radius max. (inside/outside)	3.60m / 6.80m
Gradeability	45%
Drive speed-stowed	0-5.0km/h
Drive speed-raised	0-0.8km/h
Power
Drive x Steer	4WD×2WS
Battery	80.0V/460Ah (Lithium battery)
Charger (input)	220-380V AC
Others
Weight	15670kg
