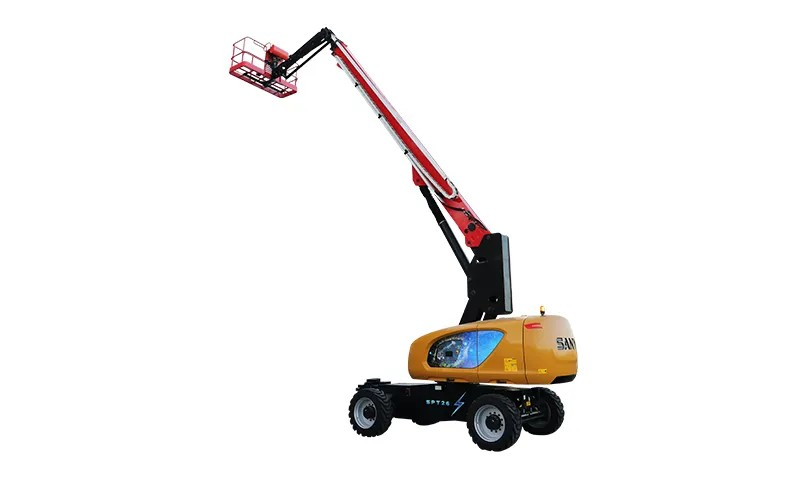

Telescopic Boom Lift SPT26 (SPT88) (27–29 m)

Name: Telescopic Boom Lift SPT26 (SPT88) (27–29 m)
SKU: SPT26
Availability: InStock

Telescopic Boom Lift
• Maximum Working Height: 28.7 m
• Maximum Platform Height: 26.7 m
• Maximum Horizontal Outreach: 20.3 m

Manufacturer: SANY

Telescopic Boom Lift SPT26 (SPT88) (27–29 m)- Rent

SKU: SPT26

Start date: *

End date: *

Qty:

Telescopic Boom Lift SPT26 (SPT88) (27–29 m)- Buy

SKU: SPT26

Qty:

SANY telescopic boom model SPT26 designed for maximum horizontal outreach, center-mounted boom, and rugged chassis for outdoor tasks.

Products specifications

Attribute name	Attribute value
Telescopic Boom Lift Dimensions
Platform height max.	26.70m
Working height max.	28.70m
Horizontal outreach max.	20.30m
Length (stowed)	12.30m
Width (stowed)	2.49m
Height (stowed)	3.05m
Platform dimension (L x W)	2.44m×0.91m
Ground clearance	0.41m
Wheelbase	3.05m
Lift capacity (Unrestricted/Restricted/Restricted)	300kg/400kg/480kg
Turntable tail swing	1.50m
Jib rotation	+70° / -65°
Turntable rotation	360° Continuous
Platform rotation	180°
Telescopic Boom Lift Performance
Platform occupancy max. (Unrestricted/Restricted/Restricted)	2 Persons and tools / 2 Persons and tools / 3 Persons and tools
Tilt sensor activation	X-5° / Y-5°
Turning radius max. (inside/outside)	3.66m / 6.86m
Gradeability	45%
Drive speed-stowed	0-6.0km/h
Drive speed-raised	0-0.8km/h
Power
Drive x Steer	4WD×2WS
Fuel tank capacity	160L
Engine	55.4kW/2600rpm/ V3307-TE5AB/ KUBOTA/ China Stage IV/ Euro Stage V/ Tier 4 Final
Others
Weight	15700kg
