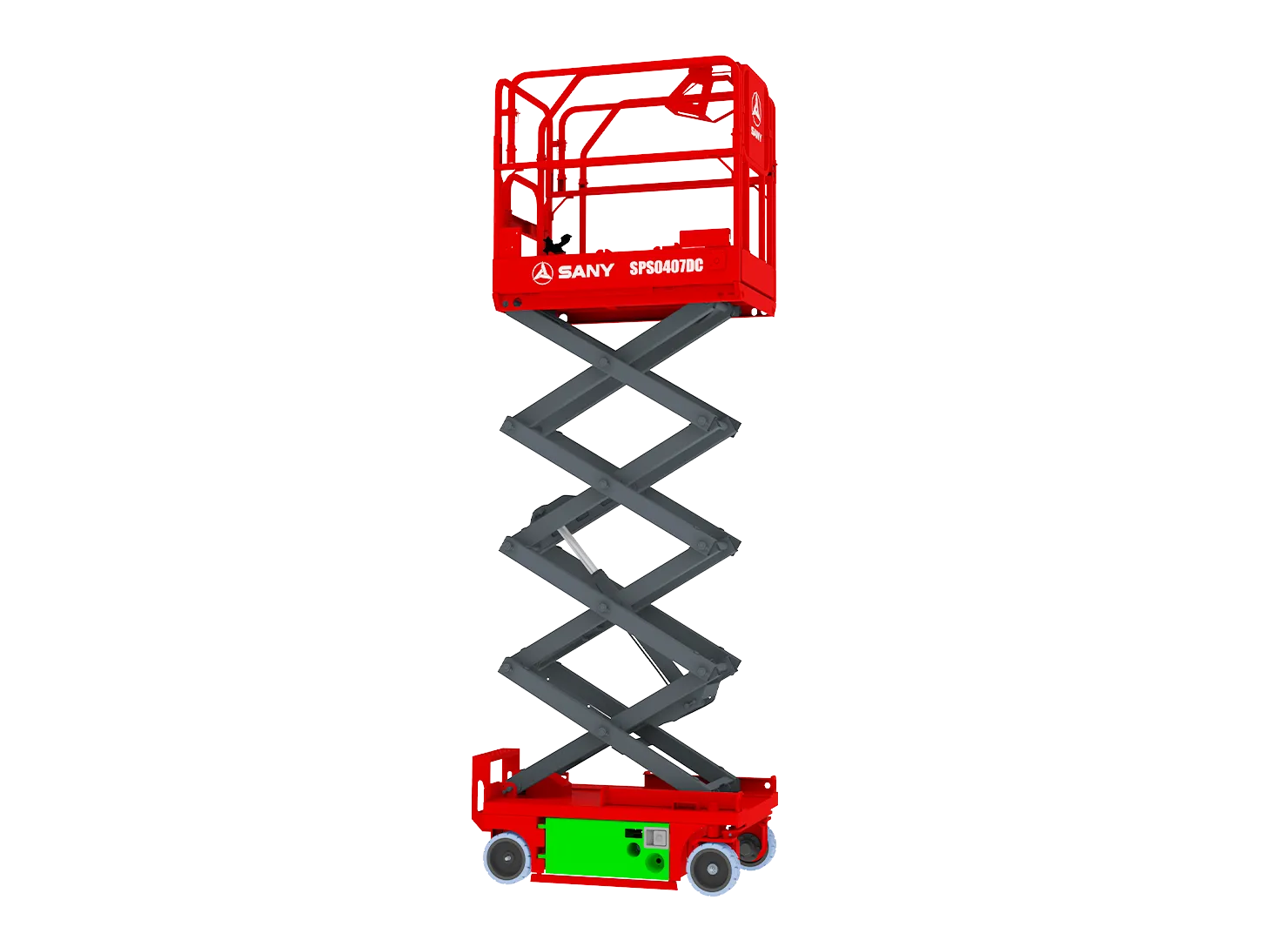

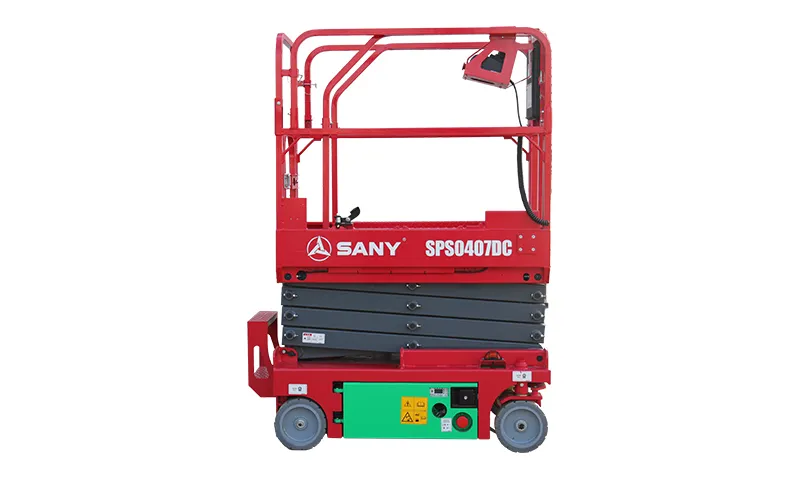

Scissor Lift SPS0407DC (SPS1530DC)

Scissor Lift
• Maximum Working Height: 6.5 m
• Maximum Platform Height: 4.5 m
• Platform Extension: 0.6 m
Manufacturer: SANY
Scissor Lift SPS0407DC (SPS1530DC) - Rent
SKU: SPS0407DC
*
*
Scissor Lift SPS0407DC (SPS1530DC) - Buy
SKU: SPS0407DC

The SANY scissor lift SPS0407DC (SPS1530DC) is a compact, electric‑drive aerial work platform designed for safe and efficient operation in tight spaces. With a maximum platform height of 4.5 m and working height of 6.5 m, it supports up to 230 kg. Standard features include proportional lift and drive controls, intelligent fault diagnosis, tilt protection, automatic pothole protection, and emergency descent. Its modular design ensures over 90% part commonality across the SANY scissor family, reducing maintenance costs. IP67‑rated electrical components, durable e‑coat/powder coating, and a swing‑out battery compartment guarantee long‑term reliability. Ideal for construction, warehouses, logistics, and indoor maintenance.

Products specifications

Attribute name Attribute value
Dimensions
Working height max. 6.50m
Platform height max. 4.50m
Length machine with/without ladder 1.57m/1.42m
Width 0.76m
Machine height 2.05m
Machine height – rails folded 1.65m
Platform length - outside 0.60m
Wheelbase 1.11m
Ground clearance - pothole guards retracted/deployed 75mm/18mm
Platform dimension (L×W×H) 1.30m×0.72m×1.12m
Performance
Maximum Platform Occupancy (Indoor/Outdoor) 2/0
Lift capacity 230Kg
Lift Capacity – Extension Deck Deployed 120Kg
Drive Speed – Stowed / Raised 4.0/0.8(km/h)
Turning radius - inside/outside 0.40m/1.60m
Lifting Motor 1.30kW
Gradeability – Stowed 25%
Tilt Sensor Activation (Side-to-Side / Front-to-Back) 1.5°/3.0°
Solid Non‑Marking Tires Ø305mm×100mm
Power Supply
Battery Specifications 2×12V/115Ah
Battery Charger (Input Requirements) AC100~240V
Drive Motor DC24V
Additional Features
Machine Weight 950Kg
Forklift pocket Backward forklift hole
