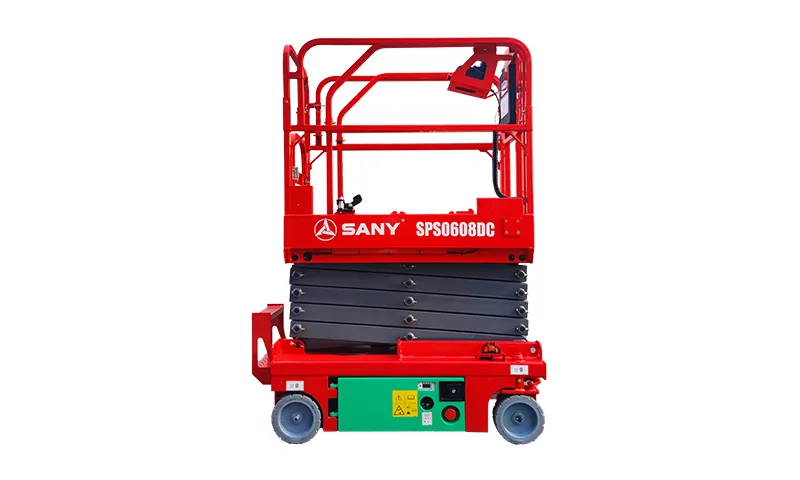

Scissor Lift SPS0608DC (SPS1832DC)

Scissor Lift
• Maximum Working Height: 7.6 m
• Maximum Platform Height: 5.6 m
• Platform Extension: 0.6 m
Manufacturer: SANY
Scissor Lift SPS0608DC (SPS1832DC) - Rent
SKU: SPS0608DC
*
*
Scissor Lift SPS0608DC (SPS1832DC) - Buy
SKU: SPS0608DC
The SANY scissor lift SPS0608DC (SPS1832DC) is a compact, electric‑drive aerial work platform designed for safe and efficient operation in both indoor and outdoor environments. With a maximum platform height of 5.6 m and working height of 7.6 m, it supports up to 240 kg and an extension deck capacity of 120 kg, providing versatility for tools and materials. Standard features include proportional lift and drive controls, intelligent fault diagnosis, tilt protection, automatic pothole protection, and emergency descent. Its modular design ensures over 90% part commonality across the SANY scissor family, reducing maintenance costs. IP67‑rated electrical components, durable e‑coat/powder coating, and a swing‑out battery compartment guarantee long‑term reliability. Ideal for construction sites, warehouses, logistics operations, municipal maintenance, and advertising installations.

Products specifications

Attribute name Attribute value
Dimensions
Working height max. 7.60m
Platform height max. 5.60m
Length machine with/without ladder 1.54m/1.39m
Width 0.81m
Machine height 2.12m
Machine height – rails folded 1.80m
Platform length - outside 0.60m
Wheelbase 1.13m
Ground clearance - pothole guards retracted/deployed 60mm/18mm
Platform dimension (L×W×H) 1.30m×0.72m×1.21m
Performance
Maximum Platform Occupancy (Indoor/Outdoor) 2/0
Lift capacity 230Kg
Lift Capacity – Extension Deck Deployed 113Kg
Drive Speed – Stowed / Raised 4.0/0.8(km/h)
Turning radius - inside/outside 0.40m/1.70m
Lifting Motor 2.20kW
Gradeability – Stowed 25%
Tilt Sensor Activation (Side-to-Side / Front-to-Back) 1.5°/3.0°
Solid Non‑Marking Tires Ø250mm×80mm
Power Supply
Battery Specifications 2×12V/115Ah
Battery Charger (Input Requirements) AC100~240V
Drive Motor DC24V
Additional Features
Machine Weight 1250Kg
Forklift pocket Backward forklift hole
